130ZYT
Description

 Series ZYT PM DC Motor is used with Ferrite PM magnet, closure and self-cooling. It is used as driving element in any system.

Mounting Method:
Foot Mounting/ flange mounting/ housing mounting
Frame no: 50—130mm

Environment requirement:
1 no more than 4000m above sea level
2 ambient temperature: -25--40℃
3 relative humidity ≤95%(at 25℃)

Technical Datas:


Model Torque
(mNm)		 Speed(rpm) Power(W) Voltage(V) Current(A) Speed tolerance(rpm)
130ZYT01 2548 1500 400 110 4.8 100
130ZYT02 2548 1500 400 220 2.4 100
1302YT03 2548 3000 800 110 9 200
130ZYT04 2548 3000 800 220 4.5 200
1302YT51 3185 1500 500 110 5.8 100
130ZYT52 3185 1500 500 220 2.9 100
130ZYT53 3185 3000 1000 110 11 200
130ZYT54 3185 3000 1000 220 5.5 200
130ZYTl01 3822 1500 600 110 7 100
1302YTl02 3822 1500 600 220 3.5 100
130ZYTl03 3822 3000 1200 110 13 200
130ZYTl04 3822 3000 1200 220 6.5 200

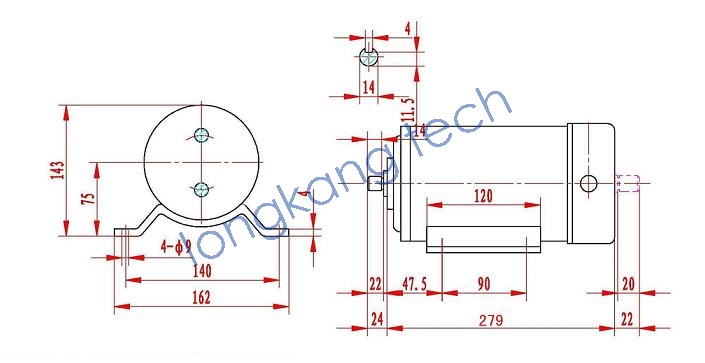

 Dimension:
